Tight 358 Galvanized Fence Gates For Prison Power Metal Residence
1
2
Brand Name :LJ
Model Number :LJ-02
Certification :ISO9001:2015
Place of Origin :Hebei Province,China
MOQ :50 Sets
Price :$8.5-10.9 per meter
Payment Terms :T/T
Supply Ability :1000 sets per day
Delivery Time :7-20days according to the quantity
Packaging Details :Wooden Pallet,steel pallet
Production :358 Galvanized Fence
Key Words :anti climbing fence
Frame finishing :Powder Coated
Metal type :Iron
Material :Hot-dip Galvanized steel
Application :Residential
Color :yellow
Wire diameter :4.0mm
Height :3000mm
Width :2000m
Mesh size :150*50mm
Feature :Easily Assembled
Contact Now
Tight 358 Galvanized Fence Gates For Prison Power Metal Residence
358 Security Fence Description
Anti climb 358 fence also known as Anti-Climb Fence,"Prison Mesh"or "358 Security Fence",it is a special fencing panel.
"358"comes from its measurements 3"x0.5"x8Gauge which is approx.76.2mm x12.7mm x4mm in metric.
It is a professional structure designed combined with an steel framework coated with zinc or RAL color Powder.
Surface Treatment: hot dipped galvanized, galvanized + powder coated
Color: All RAL color can be customized
V-top: including angle iron, barbed wire,razor barbed wire
Connecting Methods: iom bar, hexagonal clamp, screws
Production Flow: Material - Straighten & cut short - Welding - Making Curves - Parkerising & Powder coating - Packaging - Container Loading.
358 Security Fence Advabtages
* Easy to install and maintain.
* Smooth and bright surface.
* Higher strength, high security.
* Corrosion resistance, rust resistance.
* The welded joints are fixed firmly, not easy to be damaged.
* Anti-cut, high strength wire is not easy to be cut.
* Anti-climbing, small mesh openings, no fingers can pass through.

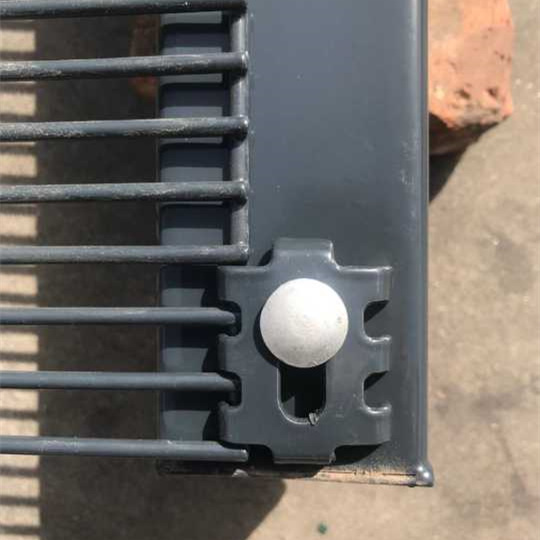

358 Security Fence Continuous clamp bar fixing
The most secure method of securing panels to posts. A continuous 40x6mm flat bar clamps the mesh panels together.
M8 fixings pass through the posts and are secured from the inside of the fence by means of anti-vandal and tamper resistant Permacone security fixings.
358 Security Fence Posts
Square hollow section posts provide additional strength and safety to the range. Plastic post-tops prevent water ingress. Baseplated, cranked and bespoke post specifications are also available.
358 Security Fence Feature
■12.7 x 76.2mm mesh aperture
■Posts are 3mm - Minimum SHS
■Fix-Continuous clamp bar fixing
■Permacone M8 security fixings
■358 isavailable in powder coated or galvfan finishes
■ Is manufactured in the China
358 Security Fence Benefits
■Virtually impossible to climb, penetrate or cut. Minimal visual impact
■Posts are the strongest of any comparable system
■ Most secure mesh-fixing method. No threaded inserts in posts which can spin making installation difficult
■Anti-vandal and tamper resistant
■ 358specifications can be tailored to suit most budgets
358 Security Fence Specification
358 Anti Climb Fence Specification
Fence height (m)
Panel size (Height×Width)
(mm)
Fence Post
(Height×Size×Thick(mm)
Clamp Bar
(Height×Width×Thick)(mm)
Middle Or Corner
Clamp No. (pcs)
2
2000x2515
2700x60x60x2.5
2000x60x5
7 or 14
2.4
2400x2515
3100x60x60x2.5
2400x60x5
9 or 18
3
3000x2515
3800x80x80x2.5
3000x80x6
11 or 22
3.3
3300x2515
4200x80x80x2.5
3300x80x6
12 or 24
3.6
3600x2515
4500x100x100x3
3600x100x7
13 or 26
4.2
4200x2515
5200x100x100x4
4200x100x8
15 or 30
4.5
4500x2515
5500x100x100x5
4500x100x8
16 or 32
5.2
5200x2515
6200x120x120x5
5200x100x8
18 or 36
Note
The panels are made of high grade steel in height 2m to 3m,several panels can be installed on top of each other. Thus may be achieved a total height which you need.

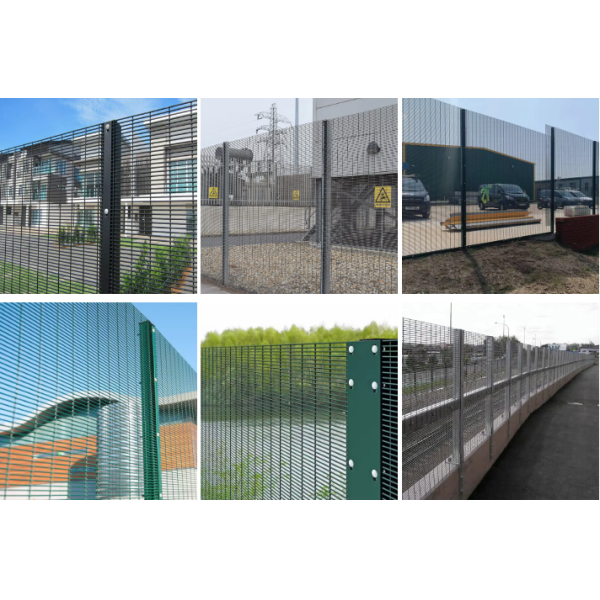

358 Security FenceApplication
Widely used in gardens, factories, roads, highways, public buildings, parks, government buildings, sports fields, industrial and commercial fields.
358 Security Fence Package
●We put bubble film between each piece of mesh, put it on an iron pallet, fix it with strapping tape, then, wrap it with plastic film, and reinforce thel corner protector with cardboard.
●Or we secure it with strapping tape and put it in a wooden box.
●When you load or unload them, you just need to operate the forklift to put the packages into the container or your warehouse,very convenient.
